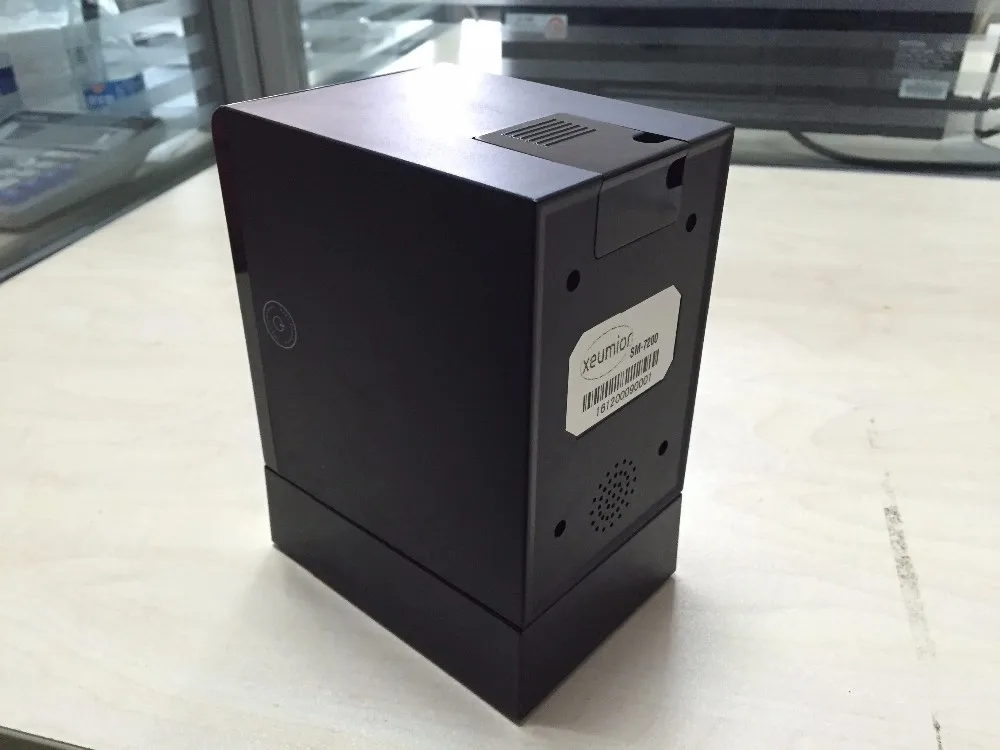

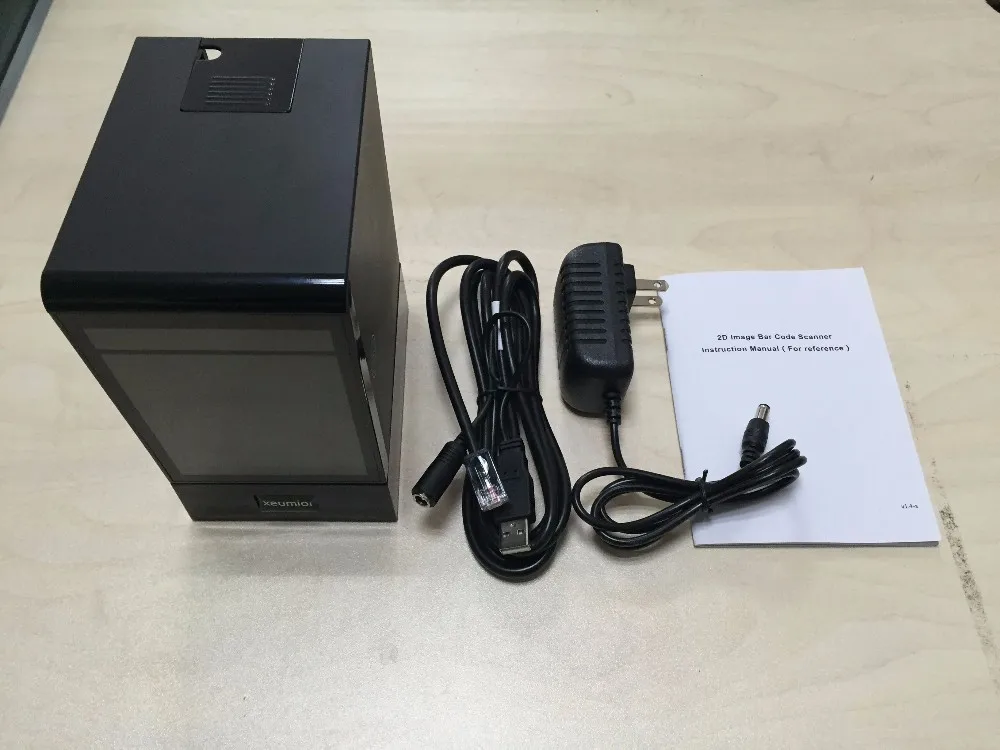

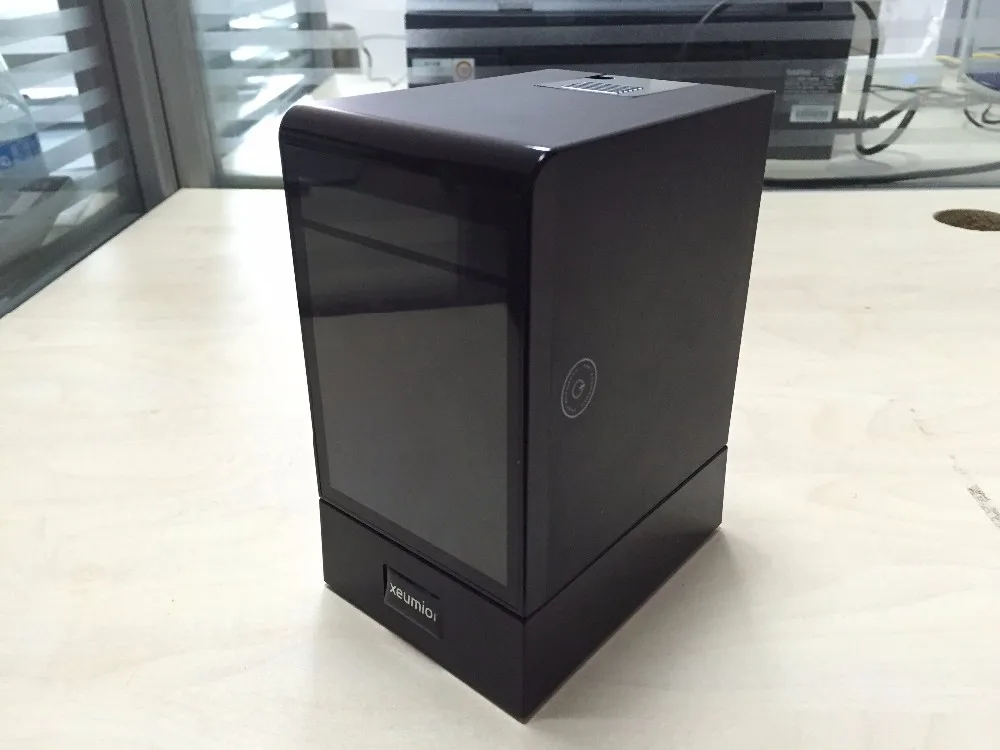

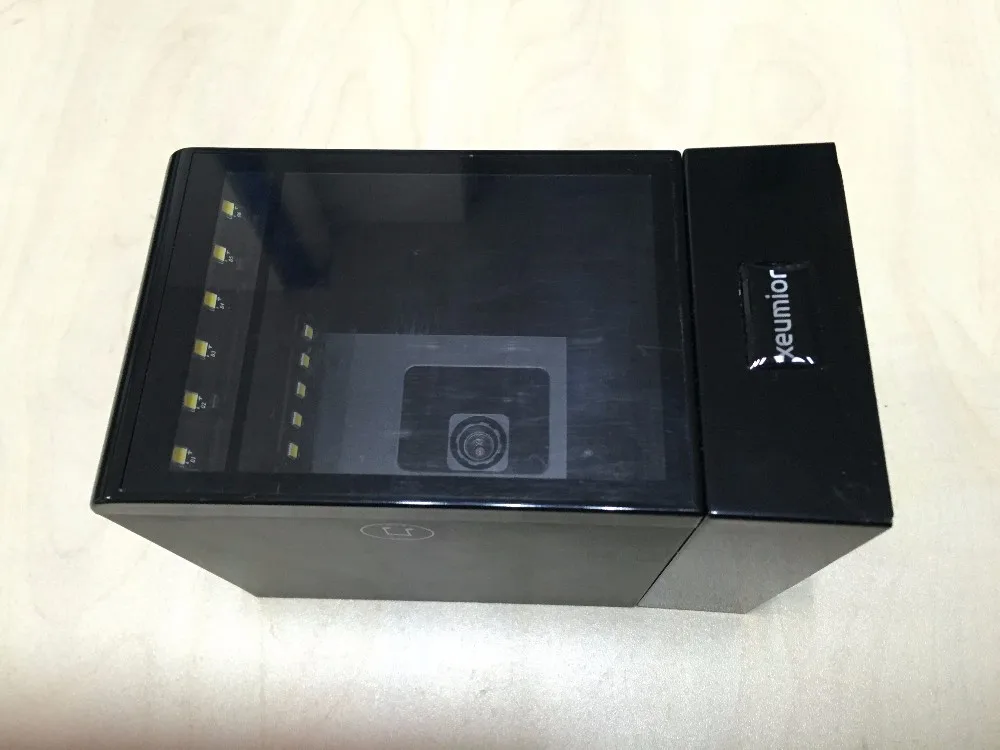

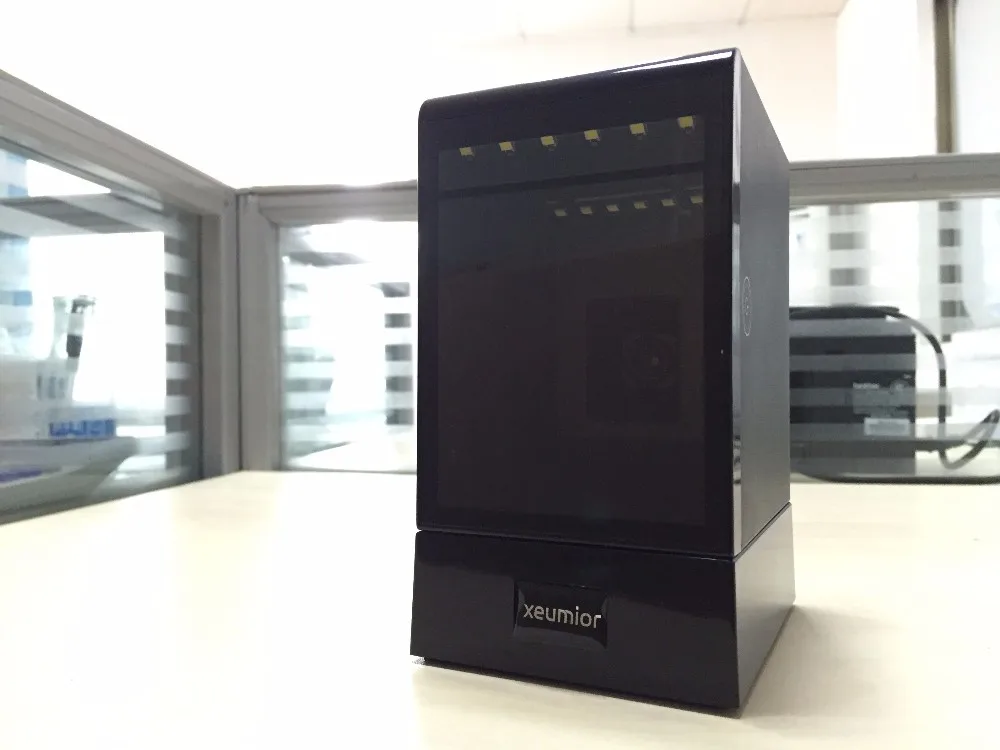

SM-7200 2D Automatic Image Barcode Scanner Scanning Platform Compact Embedded 2D Barcode Platform

Performance

Parameters

Optical Resolution

SXGA-W(Width1280*Height*1024) Ratio（5：4）

Capacity

1D

EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codebar，industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI,etc

2D

PDF417、MICROPDF417、Datamxtrix、QR、Maxicode、Aztec、etc.

Decode Accuracy&

Depth of Field

Tested Code

Minimum

Maximum

5mil code39

0CM

14CM

13mil EAN13

0CM

24CM

12mil DM

2CM

18CM

16mil QR

2CM

19CM

7MIL PDF417

0CM

20CM

Scanning Available

Zone

3CM

Distance From 3CM

CM* CM

7CM

Distance From 7CM

CM* CM

Light Source

Wavelength:675nm±3nm Infrared LED

Decode Accuracy

4mil

Code Available

1D ,2D Codes on Paper，film ,tablet PC and Cellphone

Scanning Speed

2600Times/Second

Symbol Contrast

20%

Decode Angle

Horizontal,vertical 360°

OCR Character Decode

Could be Customized

enviroment

Drop

Design to withstand 2 M drops to concrete 300 TIMES

Environment Sealing

IP54

Working Temperature

-20-55℃

Conserve Temperature

-40-65℃

Working Humidity

5-95%

5-95% Non-condensed

Conserve Humidity

5-95%

5-95% Non-condensed

Environment Light

0-120000LUX

Physical

Parameters

Net Weight

920g

Packing Weight

1300g

Host Size

115MM*85MM*152MM

Packing Size

245MM*162MM*135MM

Protocol Interface

USB, RS232

Prompting

Buzzer, Red&Blue LED

Electrical Parameters

Maximum Current

440MA

Working Current

400MA

Standby Current

155MA
