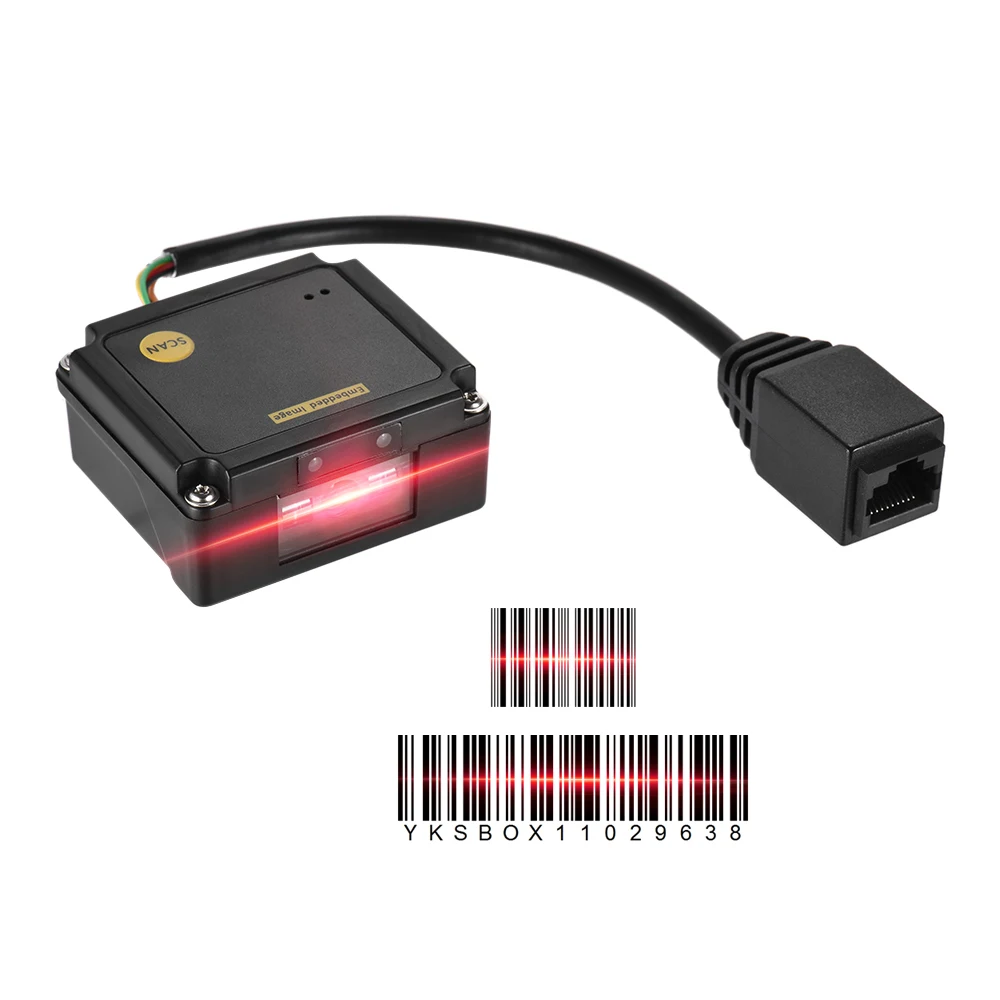

Embedded 1D Barcode Scanner Reader Module CCD Bar Code Scanner Engine Module with RS232 Interface


994 in stock



Supports manual/ auto-sensing scanning, 2 modes for option.
Professional scanner with high accuracy, supports 1D bar-codes on paper/ film/ screen.
High-sensitivity sensor& advanced technology, good decoding performance.
Small in size, easily embedded and fixed.

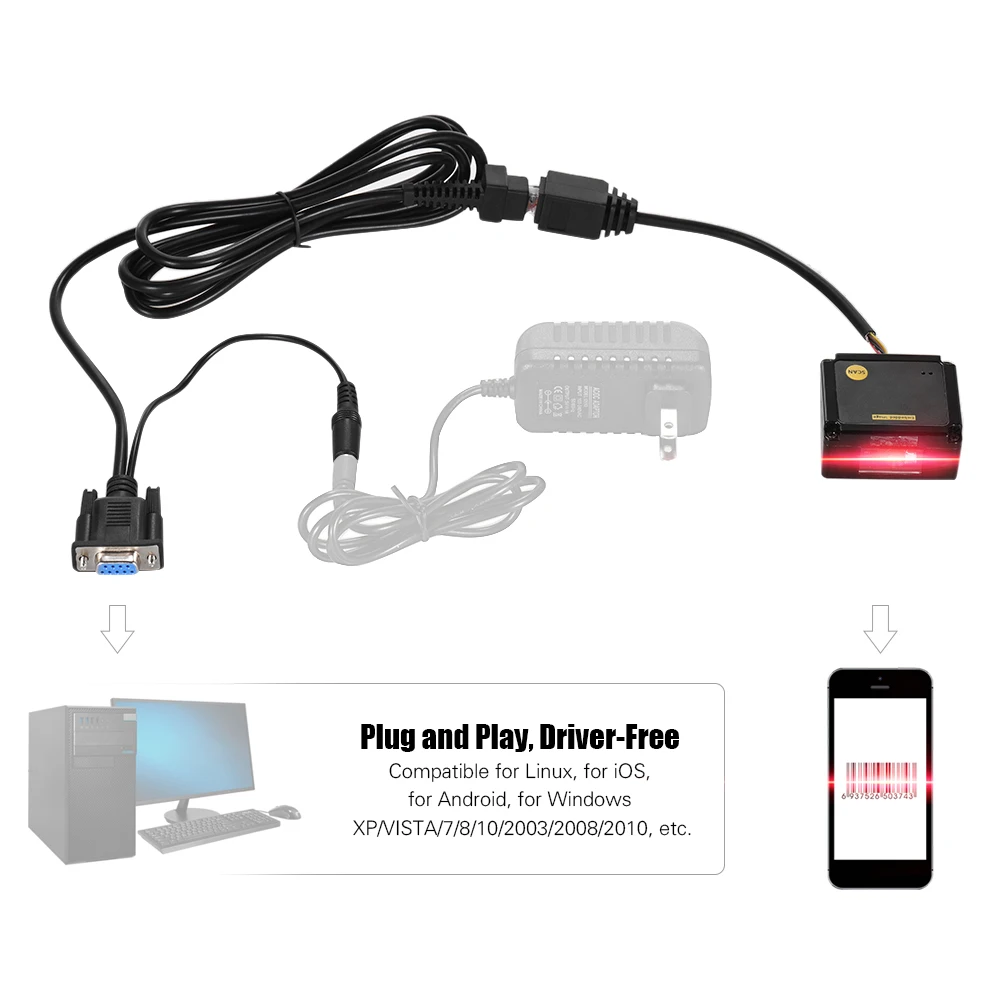

Plug and play, driver-free, convenient for usage.
Dust-proof and shockproof, long service life.
Specialized decoding software algorithm, supports for customization.
Wide-range in application: parcel locker, supermarket locker, ticket machine, logistics, hospital, etc.

Color: Black
Light Source: visible red light
Scanning Speed: 120 times/S
Scanning Angle: Horizontal: 72°,Vertical: 82°
Decode Accuracy: 4mil
Decoding Ability: EAN13, EAN8, UPC A, UPC E, Code 39, Code 93, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 128, EAN/ UCC 128, Code 11, Chinese Post, etc.
Code Available: 1D Codes on paper/ film/ screen
Prompt Way:buzzer and Red& Blue LED
Transmission Range: 15 meters in open space.
Drop Test: 2m above the floor
Environmental Sealing: IP54

Power Jack: DC 5.5 * 2.5mm
Power Supply: DC 5V 1A Operating Current: 100mAh Operating Temperature: -20°C-60°C
Storage Temperature: -40°C-85°C
Storage Humidity: 10% to 95% Non-condensed
Item Size: 5.4 * 4.7 * 2.4cm/ 2.1 * 1.8 * 0.9in
Item Weight: 53g/ 1.9oz (only the scanner)

The power adapter is not provided in the package.

Package List:
1 * Scanner
1 * Cable
