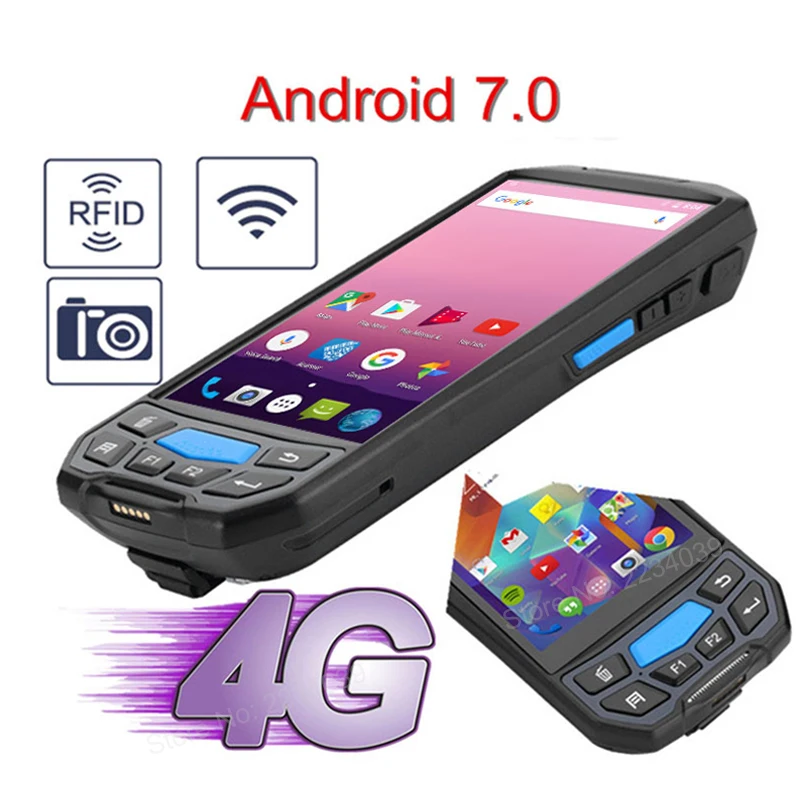

5.0 inch 1D/2D QR Barcode Scanner NFC WIFI PDA Android 7.0 5 Inch Wireless Portable Bar Code Rearder Handheld POS Terminal


499 in stock



5.0 inch 1D/2D QR Barcode Scanner NFC WIFI PDA Android 7.0 5 Inch Wireless Portable Bar Code Rearder Handheld POS Terminal

Standard Configuration:

Android 7.0+2G RAM+16G ROM+Wifi+BT4.1+GPS+FDD-TLE 4G/WCDMA/GSM +phone+8M pixel Camera+ 1D/2D Optional+Built-in 58mm thermal printer Optional + charger cradle Optional +Free SDK + Gift (Support google play store) Standard Accessories: Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs,screen protector1pcs.device box 1pcs, Gift =Tempered Glass Screen Protector 1pcs Attention: Belt Case Protect bag šŸ™ If you need the optional function, please visit this link ) : https://www.aliexpress.com/store/product/Belt-Case-protect-bag-leather-cover-for-Handheld-PDA-Android-Terminal-scanner-Wireless-Wifi-Bluetooth-barcode/2234039_32934601424.html?spm=2114.12010612.8148356.9.7bec54c2FPUNLW Attention: optional extra battery,Buy extra battery pls visit this link. https://www.aliexpress.com/store/product/Freeshipping-Battery-for-PDA-Pos-terminal-devices-Date-collector-battery-4000mAh-4200mAh-4800mAh/2234039_32963207015.html?spm=2114.12010612.8148356.7.4eac54c2mknjxT Attention:convenient charging with optional charge cradle.buy cradle pls visit this link. https://www.aliexpress.com/store/product/Freeshipping-Charge-Cradle-for-PDA-Barcode-Scanner-Pos-terminal-devices/2234039_32960252994.html?spm=2114.12010612.8148356.5.3adf54c23SjwrF Standard Features: * Default configuration :Wifi+BT+4G FDD-LTE+phone+GPS+8M camera+google player store; * 1D ,2D ,NFC ,LF(125K/134.2K),UHF,58mm Thermal printer,Biometric Fingerprint,cradle for option; * Remark:UHF production cycle is relatively long, please kindly communicate in advance * Compact and Portable Ergonomic Design with wrist strap; * Safedroid OS (Android 7.0) Highly optimized Android operating system; * 8.0M mega pixel camera; * High capacity 4800mA large capacity battery for critical requirements; * Pogo Pin interface for convenient charging with optional charge cradle; * Industrial rugged design, water-proof and protection grade(IP65); ​Screen Protector : (Gift) 2D Scan Image: Delivery Time: * Samples 3–7 working days after placing order * Bulk order depend on the Quantity Our service: * Completely SDK provided for Secondary Program * Technical support by professional engineer * Maintain repair * 12months warranty

Structural Parameter
Dimensions 172mm(L) X 80mm(W) X 27mm(D)
Weight <500g
Display Screen 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen
Expand Port SIM card, micro SD (TF) Card
Communication Interface USB2.0 Device
Input Mode Standard Stylus, touching input or keyboard input
Battery Capacity Rechargeable Li-polymer Battery 3.7V 4800mAh
Frequency 8ohm 1W speaker
Key 13pcs soft silicon key
Performance Parameter
OS Android 7.0
CPU ARM CORTEX-A53 64bit Quad-Core 1.3G
Flash ROM Standard 16G NAND Flash Storage
micro SD/TF port (Max up to 32G)
Data Communication
WI-FI Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G B1,B2,B5,B8
GSM 2G GSM/edge/GPRS (850,900,1800,1900MHz)
bt Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera 8MP autofocus camera with flash
GPS Support A-GPS
Operating Environment
Operating -20°C to 50°C
Storage Temperature -25°C to 70°C
Environment Humidity 5%RH-95%RH(no condensation)
Drop Specifications 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications 1000 times/0.5m, roll on 6 sides contact area
Sealed Environment IP65
1D Laser Scanner (OPTIONAL)
1D Laser Scanner Mingde966, HoneywellN4313,
Resolution 4Mil minimum width
Ambient Light 10000ft.candles(107640 lux)
Scanning Speed 104(±)12/sec (bothway)
Scanning Angle 47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5,

Codabar, MSI, RSS

CMOS Scanner NewLand 3096,Honeywell N6603
The Sensor Resolution 752(level)×480(vertical)pels(gray level)
Ambient Light All dark 9000ft.candles/96900 lux
focus element (VLD) 655nm ± 10nm
Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK

Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

LF RFID Reader (Optional)
Frequency 125kHz, 134kHz (FDX-B / HDX)
Protocol ISO11784/5, ISO18000-2
Range 3-8cm
HF RFID Reader (Optional)
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693
Range 3-8cm
NFC Reader (Optional)
Frequency 13.56MHz
Protocol ISO/IEC 18092 (ECMA 340)
Range 2-4cm
UHF RFID Reader (Optional)
Frequency (China) 865 – 868MHz / 920 – 925MHz
Frequency (America) 902 – 928MHz
Frequency (Europe) 865 – 868MHz (ETSI EN 302 208)
Frequency (Others) Other countries for customisation
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Linear polarisation (1.8dBi) / Circular polarisation (2.5dBi)
Power 1W (typical 24dBm, +10dBm to +30dBm)
Range 1-2m
Biometric Fingerprint (Optional)
Sensor TCS2SS
Sensor type Capacitive Sensor
Function Enrollment, compare, deletion etc.
Resolution 508DPI
Memory 1,000 PCS fingerprints
