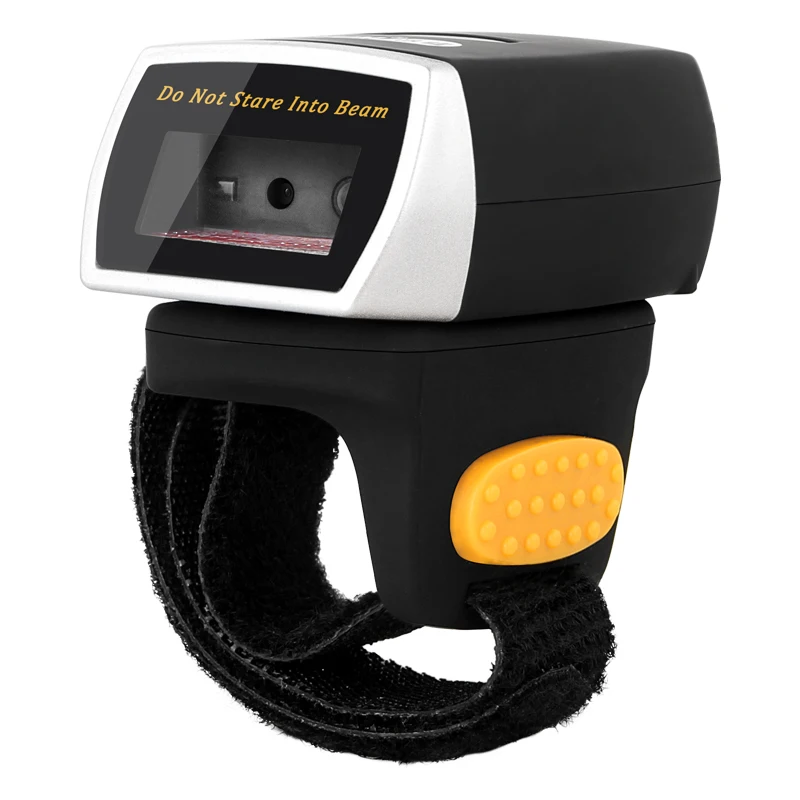

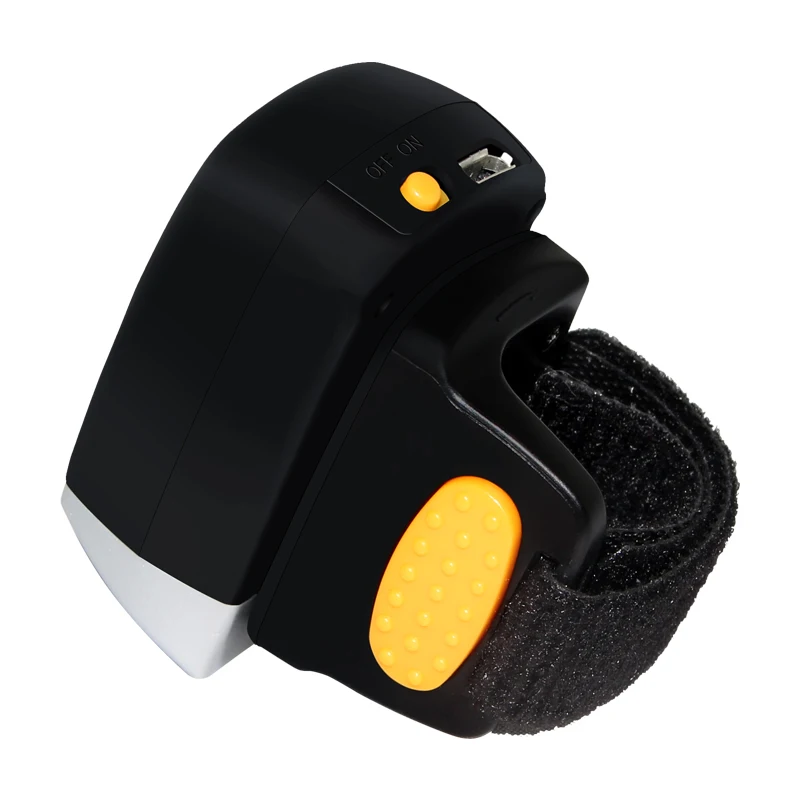

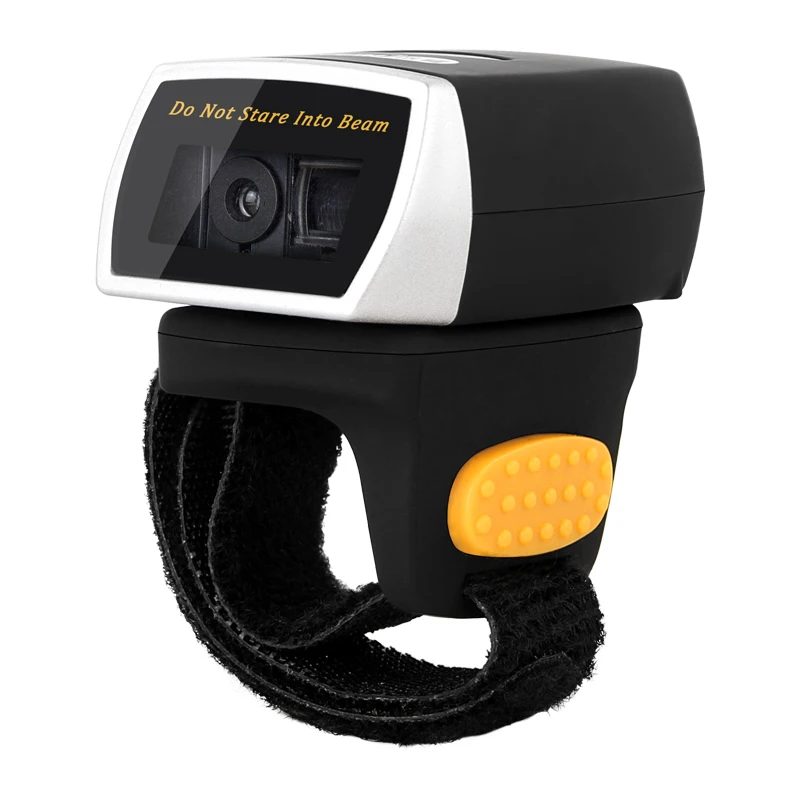

Finger Ring 1D 2D Small Barcode Scanner Android and iOS / Bluetooth 1D Barcode Scan For Commercial POS System FREE SHIPPING

Feature

Light Resource

C C D (Safe visible light)

Bluetooth Version

V 4.0 ，HID mode ，SPP mode

CPU

32 bit high resolution

Supported Symboligies

1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4,

Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code

93, Code 11,

Charging time

2~3hour

Scans per charge

6000 times

Precision

≥ 3 mil (0.10mm)

Decode speed

260 times/second

Decode error rate

Less than 1/8 million

Depth of scan field

10-800mm

Print Contrast Signal

≥ 30°

scan angle

Yaw(Skew)45° & Pitch60°

Working Distance

Over 30meter

Battery capacity

360MAH

Mechanical / Electrical

Working Voltage

3.3 VDC ±5%

Current

Receiving 26.6mA, Launching 24mA

Rated power consumption

186mW

Environment

Operating temperature

-20°C-45°C

Storage temperature

-20°C-45°C

Humidity

5%-85%

Feature

Light Resource

CMOS

Bluetooth Version

V 4.0 ，HID mode ，SPP mode

CPU

32 bit

Supported Symboligies

2D: PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code

1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4,

Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code

93, Code 11,

Charging time

2~3hour

Scans per charge

1000-1500 times

Precision

≥ 5 mil (0.10mm)

Decode speed

5 in/s(12.7 cm)

Decode error rate

Less than 1/8 million

Depth of scan field

10-800mm

Print Contrast Signal

≥ 30°

scan angle

Yaw(Skew)45° & Pitch60°

Working Distance

Over 30meter

Battery capacity

360MAH

Mechanical / Electrical

Working Voltage

3.3 VDC ±5%

Current

working 230mA

Standby: 3.4mA (RS232）, 54.0mA(USB)

Rated power consumption

186mW

Environment

Operating temperature

-20°C-45°C

Storage temperature

-20°C-45°C

Humidity

5%-85%
