15inch dual screen whole set pos system cash register ponit of sales for retail
Specification
|
Model |
1519D |
|
Optional Color |
Black or White |
|
Main Board |
Intel Celeron Processor |
|
CPU&GPU |
Intel Celeron Bay Trail-D J1900 quad core 2.0 GHZ |
|
Memory Support |
DDR1333 2GB*1 (default) （Optiona：4GB,8GB） |
|
Internal Storage |
SSD 32GB-Sata3 (default) Optional：64GB,128GSSD |
|
Primary Display& touch(default) |
15.6 inch TFT LCD (default) |
|
Second display |
11.6 inch display monitor （Optional：touch) |
|
Resolution |
1366*768(max) |
|
Touch Screen |
Capacitive touch panel (default) |
|
Brightness |
350cd/m2 |
|
Extension Module(built-in) |
Optional：WIFI&Bluetooth，Camera，3G/4G，Speaker，Card Reader |
|
View Angle |
Horizon: 150; Vertical :140 |
|
I/O port |
1* power button 12V DC in jack*1 |
|
Serial*2 DB9 male |
|
|
VGA(15Pin D-sub)*1 |
|
|
LAN:RJ-45*1 |
|
|
USB(2.0)*6 |
|
|
Audio out*1 |
|
|
Operating temperature |
0℃ to 40℃ |
|
Storage temperature |
-20℃to 60℃ |
|
Compliance |
FCC Class A/CE Mark/LVD/CCC |
|
Packing dimension/ Weight |
410*310*410mm / 7.6 Kgs |
|
Operating System |
Windows7 beta version(default)/Windows10 beta version |
|
Power adapter |
110-240V/50-60HZ AC power, Input DC12/5A out put |

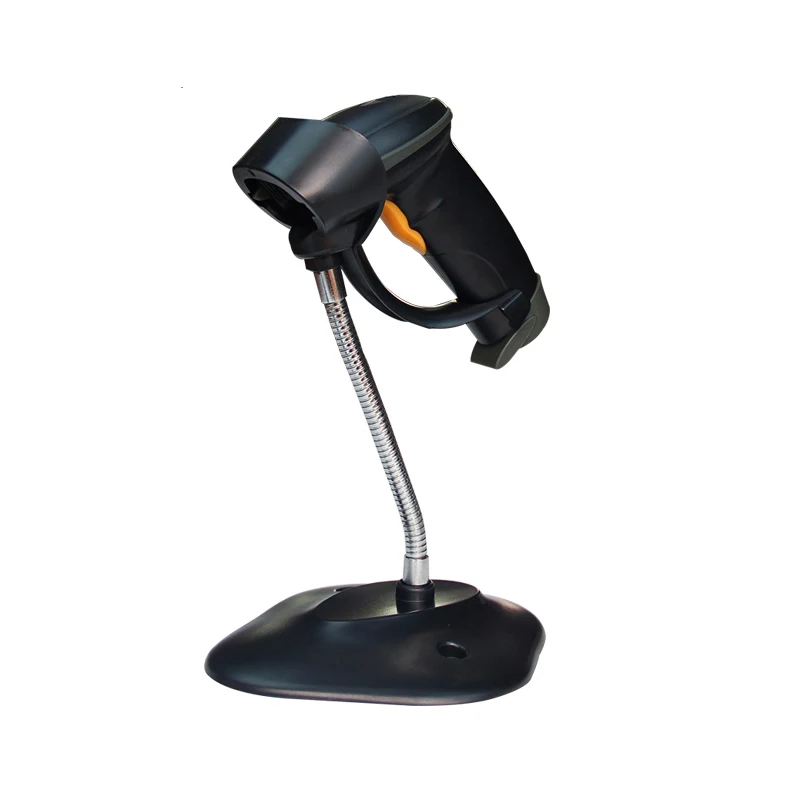

1D barcode scanner
Light source: visible (650-670nm)
BER: 1/5 million
Scan rate: 100 scans /sec
Dropping test: 100 times/1.5m
Resolution: 0.10mm(4mil)at PCS0.9
Reading preciseness: 0.40 to 0.825 mm
Reading distance: 10-600mm
If you need 2Dscanner,pls tell us in advance
Cash Drawer
Dimensions: 490(W) x 490(D) x 160(H)mm
Cash Tray Dimensions: 359(W) x 326(D) x 63(H)mm
8-10 Coin / 6 Bill, 2 Metal Wire Gripper + 4 ABS Vertical;
8-10 Coin / 6-8 Bill, All ABS Vertical;
Heavy duty metal drawer with stainless steel lock & key
thermal receipt printer
|
Printing Method |
Thermal Line |
|
Printing Speed |
300mm/s (Max) |
|
Resolution |
8 dots/mm, 576 dots/line |
|
Effective Printing Width |
80mm |
|
Character Set |
GB18030,BIG5 24x24dots |
|
Print Font |
FontA: 12 x24 Font B: 9×17 |
This printer is USB+COM port default,if you need Lan port,pls tell us in advance.
———–NOTCIE————
We manufacturing touch POS terminal & touch monitor.As a professional POS hardware solution manufacturer and supplier, our products range from all one touch POS terminal, touch monitor, thermal receipt printer, bar code scanner, bar code label printer, cash drawer and magnetic card reader to many POS consumable items such as label, magnetic card and thermal paper and ribbon etc.
1.Pls read product information carefully,some extra functions such like MSR,VFD secend display,Blue teeth,WIFI etc. are not included,these functions will add as your need.
2.All prodcuts’ price doesn’t include the SoftWare.
3.All products’ Operation System is beta version, which only support English language. We can install the ultimate version(extra fee) for you as your need.
4.Once you has received the goods pls confirm the order,also if the goods are damaged pls refuse to sign and calling the deliver office to deal with.
5.If your country has the limited of import duty pls let us know how much declare value should we write,which can help us timely delivery for you.
6.Sometimes some shipping method like DHL/FED IE can’t ship to some destinations like Russian and it only can send by EMS or others,but if it not suitable for you pls to contact us to find a proper one before you place the order.
7.Pls give us the opportunity to solve any problem you may have,your positive feedback can help us a lot.
8.We are not responsible for any custom duty or import tax.
——————————
