PDA enjoy One Year Warranty. Any quality problem within warranty, we accept to change or repair it. Function: * Default configuration : Wifi+BT+4G FDD-LTE+phone+GPS+8M camera+google player store+ 58mm Thermal printer * QR scanner, NFC, RFID for option * Compact and Portable Ergonomic Design with wrist strap * Safedroid OS (Android 7.0) Highly optimized Android operating system * 8.0M mega pixel camera * High capacity 4800mA large capacity battery for critical requirements * Pogo Pin interface for convenient charging with optional charge cradle * Industrial rugged design, water-proof and protection grade(IP65) Package for standard configuration: PDA *1 Battery *1 USB Data cable *1 Power adapter *1 Screen Protector *1 Sepcification for Standard configuration:
| Structural Parameter | |
| Dimensions | 172mm(L) X 80mm(W) X 27mm(D) |
| Weight | <500g |

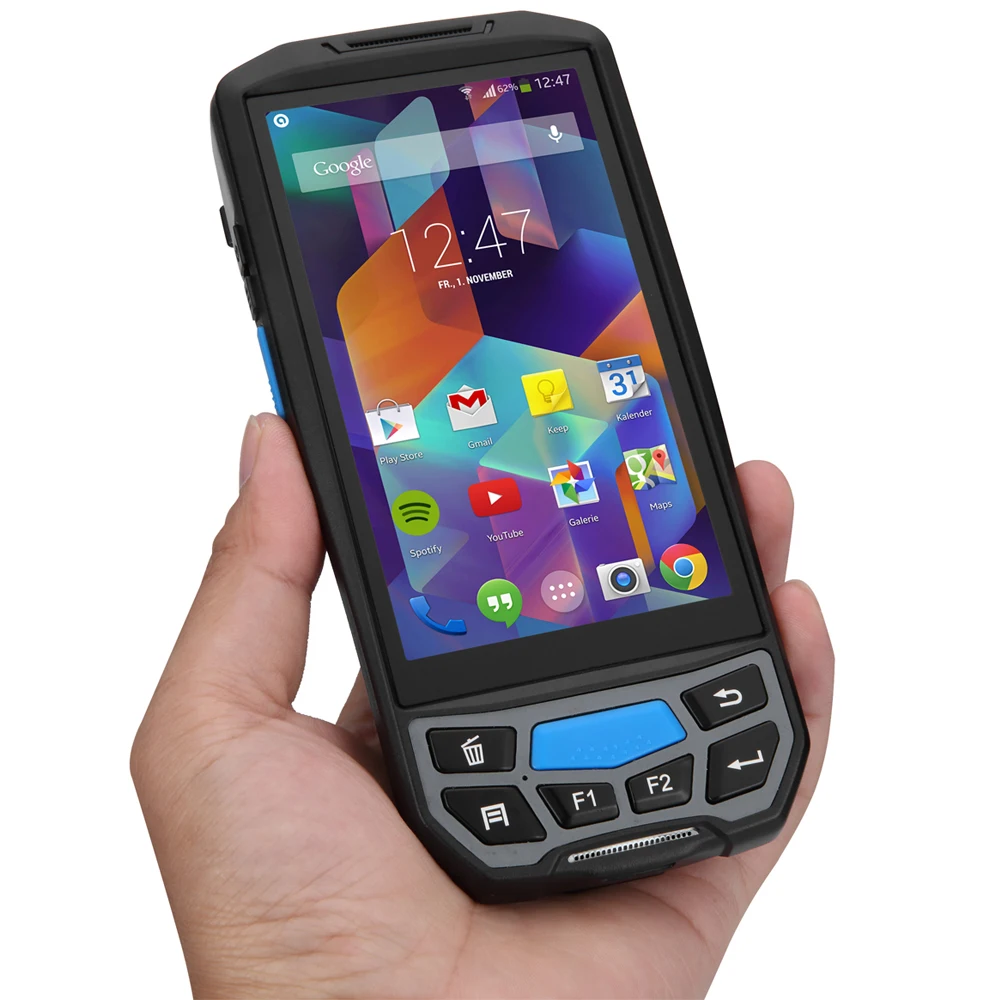

| Display Screen | 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | USB2.0 Device |
| Input Mode | Standard Stylus, touching input or keyboard input |

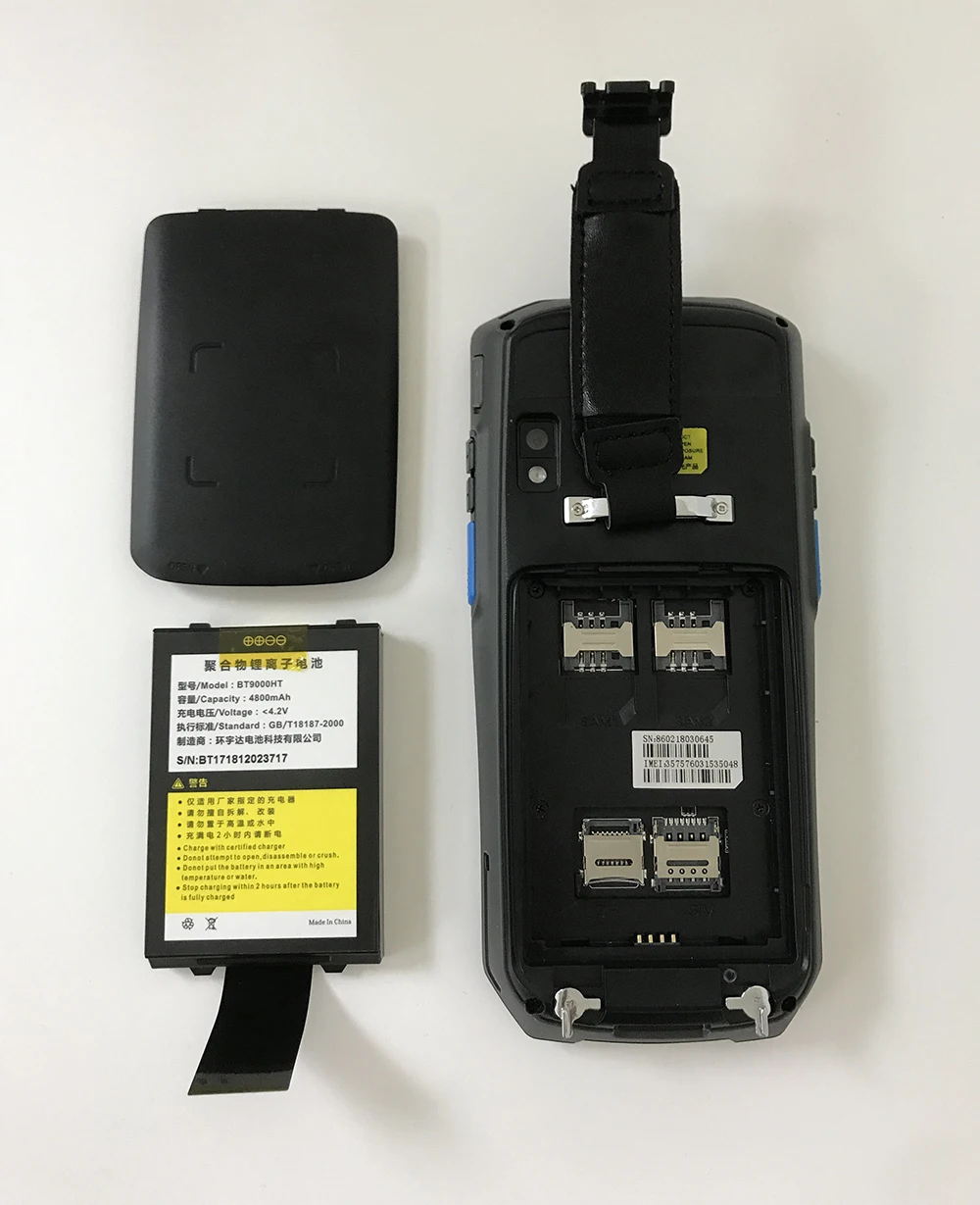

| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4600mAh |
| Frequency | 8ohm 1W speaker |
| Key | 13pcs soft silicon key |
| Performance Parameter | |

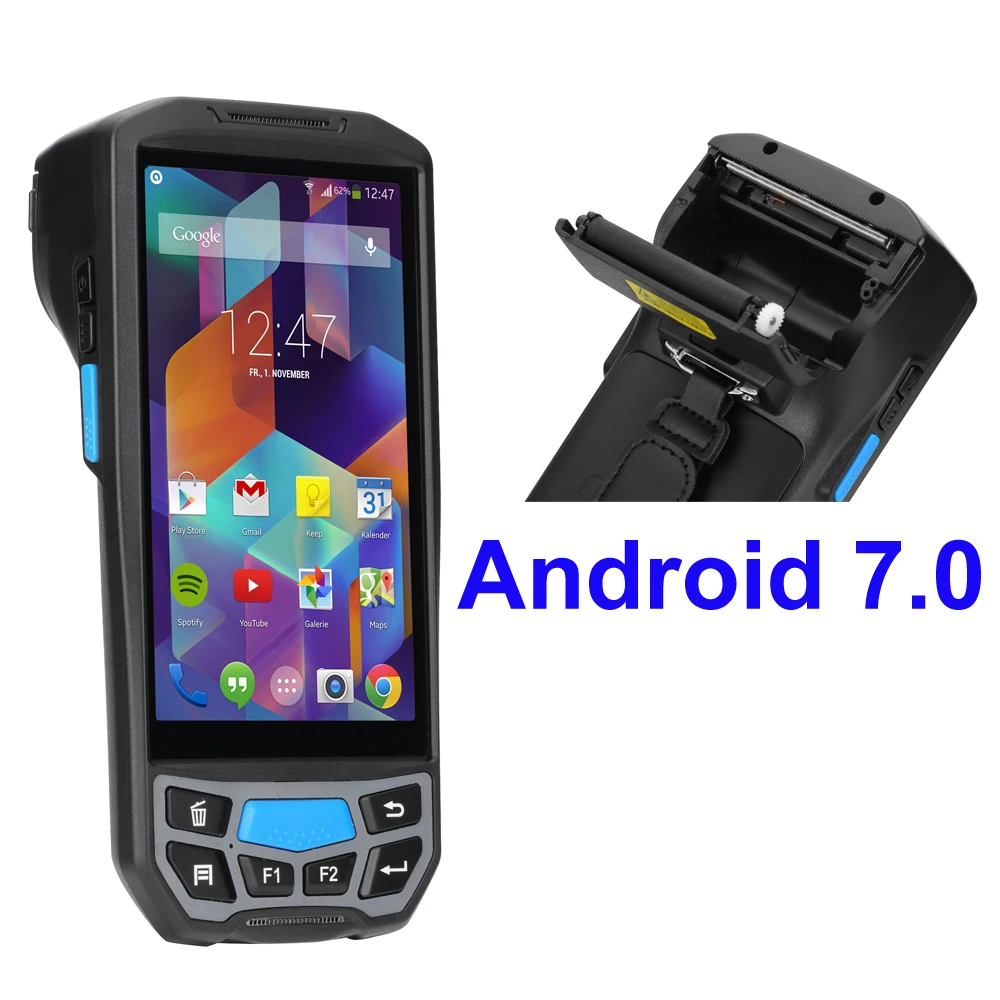

| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64bit Quad-Core 1.3G |
| RAM | 2G RAM |
| Flash ROM | Standard 16G NAND Flash Storage |
| micro SD/TF port (Max up to 32G) | |
| Data Communication | |
| WI-FI | Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover |
| FDD/TDD-LTE 4G | TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3) |
| WCDMA 3G | B1,B2,B5,B8 |
| GSM 2G | GSM/edge/GPRS (850,900,1800,1900MHz) |
| bt | Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Standard Modules | |
| Camera | 8MP autofocus camera with flash |
| GPS | Support A-GPS |
| Operating Environment | |
| Operating | -20°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |

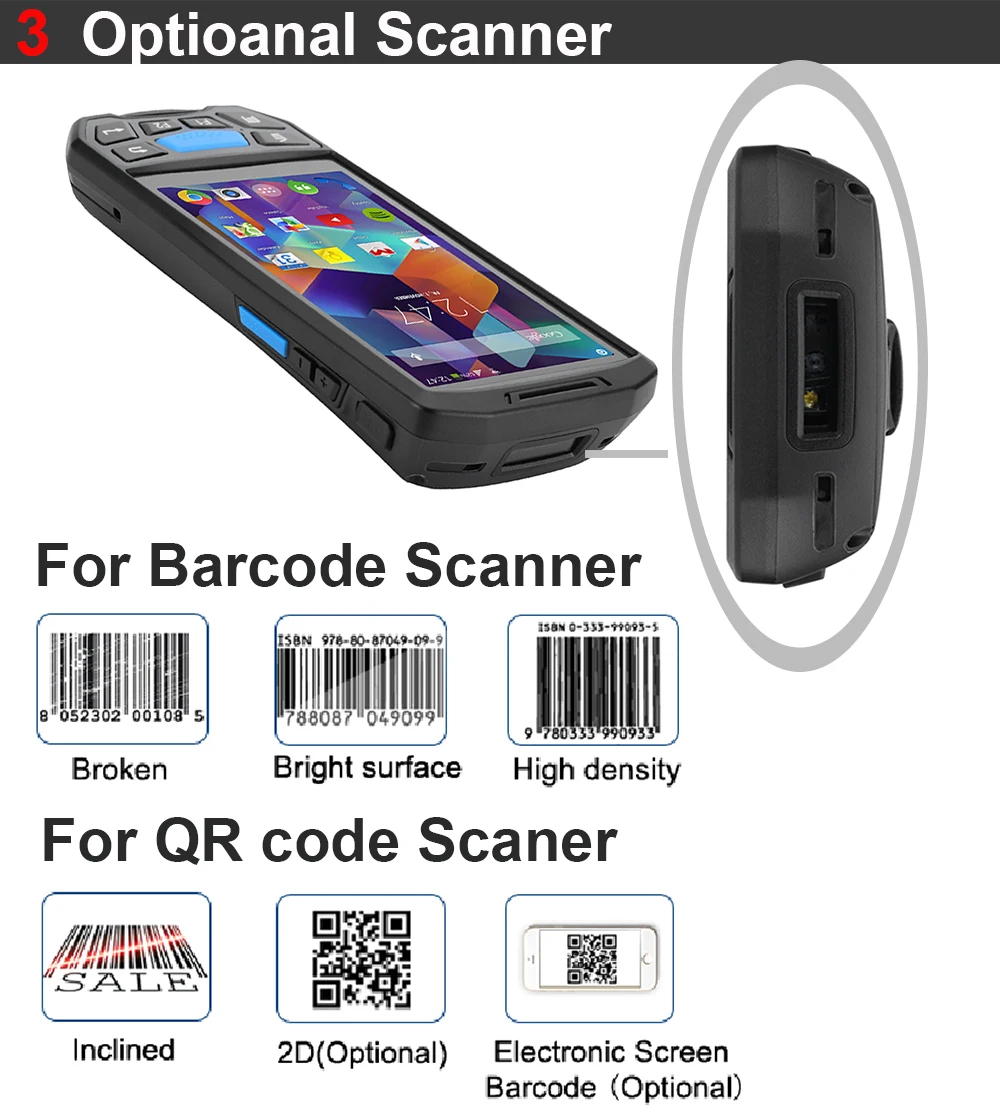

| 1D Laser Scanner (OPTIONAL) | |
| 1D Laser Scanner | Mingde966, HoneywellN4313, |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| 2D CMOS (OPTIONAL) | |
| CMOS Scanner | NewLand 3096,Honeywell N6603 |
| The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
| Ambient Light | All dark 9000ft.candles/96900 lux |
| focus element (VLD) | 655nm ± 10nm |
| Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |

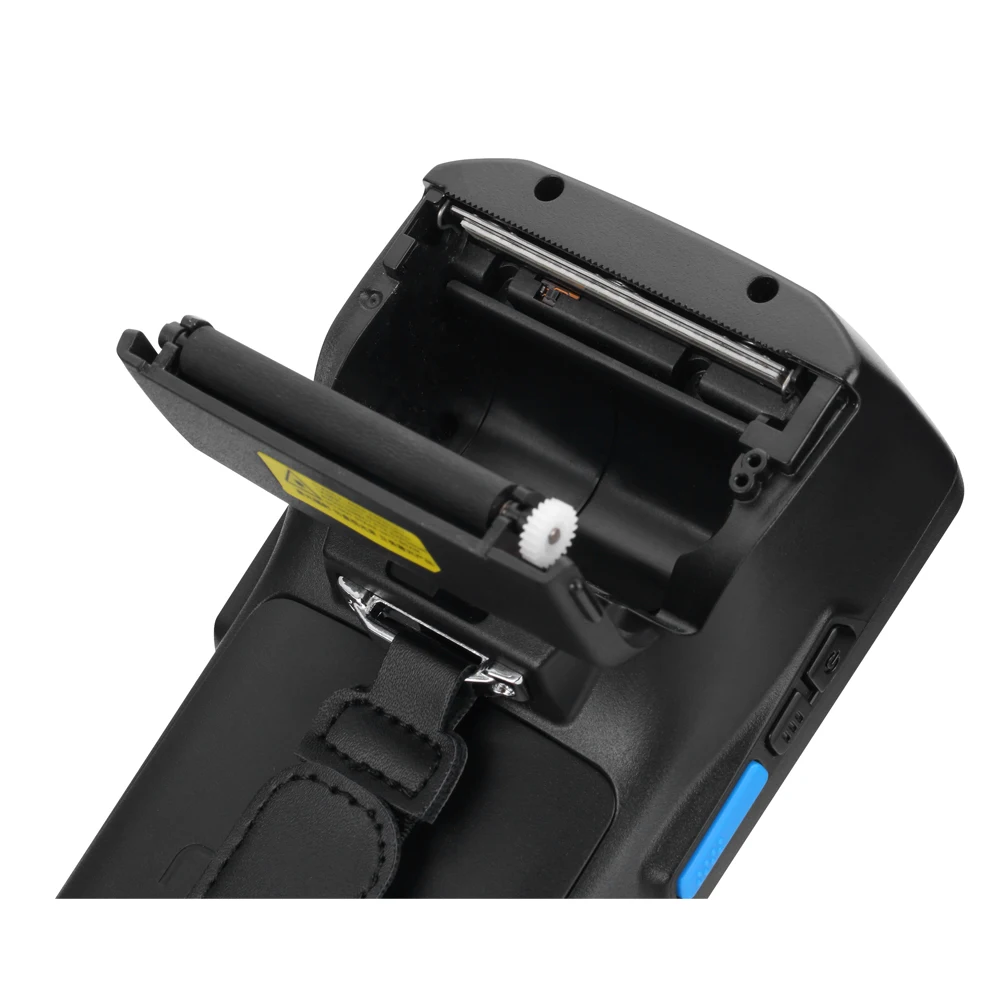

| Built in-58mm thermal Printer | |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol | ISO/IEC 18092 (ECMA 340) |
| Range | 2-4cm |
| UHF RFID Reader (Optional) | |
| Frequency (China) | 865 – 868MHz / 920 – 925MHz |
| Frequency (America) | 902 – 928MHz |
| Frequency (Europe) | 865 – 868MHz (ETSI EN 302 208) |
| Frequency (Others) | Other countries for customisation |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Linear polarisation (1.8dBi) / Circular polarisation (2.5dBi) |
| Power | 1W (typical 24dBm, +10dBm to +30dBm) |
| Range | 1-2m |
