Original ZJ 5890K 58mm POS Thermal Receipt Bill Printer Universal Ticket Printer Support cash drawer driver Dot-matrix

Black USB Port 58mm thermal pirnter low noise POS Receipt printer 5890k of commercial retail POS systems ZJ 5890K

1) Basic Info and Key Features :

Item Name:Thermal Receipt Printer

Item Number:POS-5890K

Suitable for all types of commercial retail POS systems

Light in weight and smart in shape

High-quality printing and low cost

Low noise and high-speed printing

Support cash drawer driver

Easy for paper installation, Easy maintenance and excellent structure

Low power consumption and low operating costs ( No Ribbons or Ink cartridges )

2) Technical Specifications :

Print Method: Thermal Line Printing
Print Font Size:384dot/Line ; ANK Character
Font A:12*24 dots,1.5(W)*3.0(H)mm

Chinese simplified/traditional:24*24 dots,3.0(W)*3.0(H)mm

Printer Character: GB one/two Chinese character 24*24 dots, Support Taiwan,Hong kong traditional

Extend Character :

OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/

Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/

OEM858/IranII/Latvian/ Arabic/PT151,1251/OEM747/

WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

3) Printer Parameters :

Support NV LOGO Print

Print Speed:90mm/sec

Interface:USB Port

Roll Diameter:50 mm

Print Thickness:0.06-0.08mm

Unit Weight:800 g

Dimension:175*130*110mm

Power Adapter:DC 12V/3A

Cash Drawer Control: DC 12V/1A

Reliability Print: 100km

Drivers: Win 9X /Win 2000 /Win 2003/Win XP/Win Vista/Win 7 /Win8/Linux

Compatible With EPSON, SAMSUNG System

Print Command:Compatible With Command ESC/POS

4) Printer Appearance And Operational Schematic

Paper Exit : print paper exit

Feed Button: Printer self-inspection, Model change, Paper feed

The State Of Light: Red light flashing means no paper ; Red light always lit means normal.

Power Light: Blue light always lit means normal ; Blue light off means not connect to power or abnormal.

Power Control Button: Control the power switch

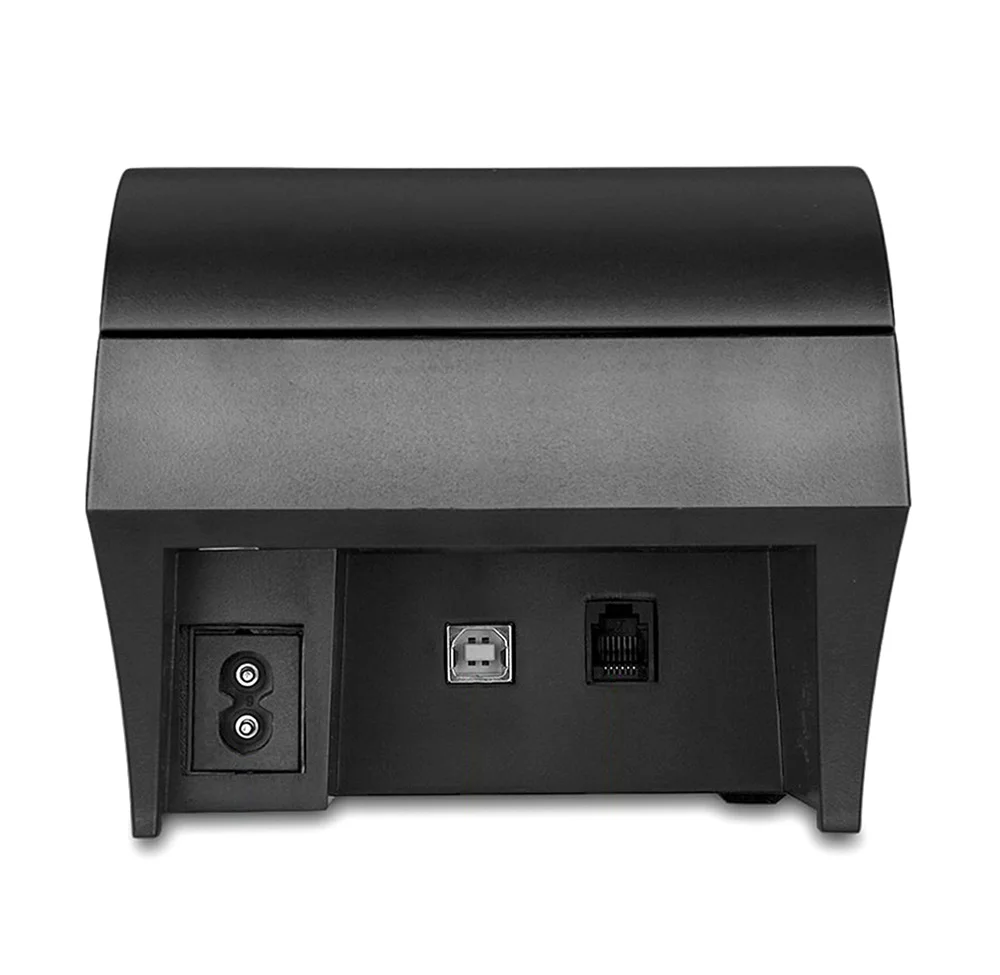

5) Printer Interface Schematic

Power Interface: Connect 110V-240V

USB Interface : Connect Tablet/PC via USB-B data cable

Cash Drawer Interface : Connect cash drawer via data cable
